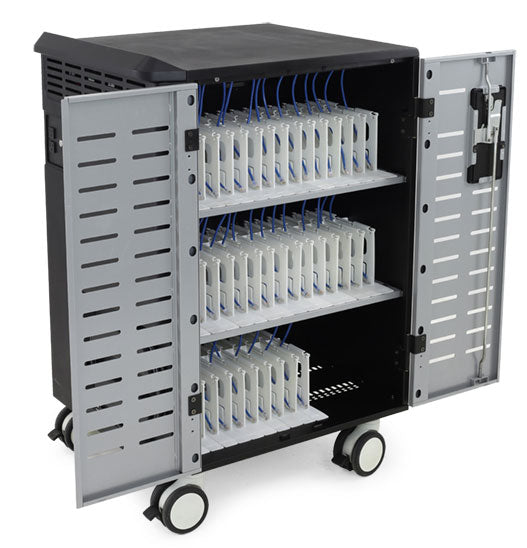

Zip40 Charging and Management Cart

DM40-1008-2



--

The one cart that gets it all done. The Zip40 is a truly universal cart for transporting, securing, protecting and charging all your mobile computing devices: Use it with tablets, Chromebook™, Ultrabook™, MacBook® and laptops—almost any device with a display size up to 15.6". Integrated PowerShuttle® Technology optimizes total charge time while safely preventing electrical circuit overload.

Benefits
More Flexibility
Adjustable dividers gives you flexibility to create the capacity option that works for you:
40-unit capacity with 1.1ʺ-wide (28 mm) slots and partial shelf for extra storage—ideal for tablets, Chromebooks and Ultrabooks
30-unit capacity with 1.4ʺ-wide (35 mm) slots—great for full-size laptops or other devices with large cases
Move/remove dividers as needed to create your own custom-size spaces. Mix and match devices: most all devices with screens up 15.6" are compatible
Separate rear access to AC adapter storage for easy one-time setup and clean cable management. Custom country-specific outlet strips include plenty of space to fit oversized wall-plug or brick-style AC adapters
Management capability available to make it easy to update devices via Wake-On-LAN. Includes pre-installed CAT6 Ethernet cables and mounting brackets for a customer-provided 1U standard rack mountable Ethernet switch (not included)
Includes external auxiliary outlet to power peripherals, location for WAP installation, and storage space for keyboards or other accessories. Also upgradeable for Ethernet management capability
More Agility
Compact 30ʺW x 26ʺD (77 x 66 cm) footprint saves valuable classroom space and makes the cart easy to maneuver in small spaces
Easily zip from one classroom to another—5ʺ dual-wheel locking casters make for a smooth ride, requiring 33% less push/pull force than carts with single-wheel casters
More Efficiency
Ergotron’s innovative, reliable PowerShuttle power management system charges up to 30% faster than a standard round-robin charging system so devices are ready you need them
Using just one power cord plugged into a standard wall outlet, it safely prevents overloading of electrical circuits by efficiently grouping the number of devices that are charged at one time. Never waste time charging empty slots
Includes a convenient ON/OFF power button
More Security
Tough, secure storage: Rugged steel construction withstands classroom abuse
Durable steel doors include a solid three-point mechanism with key lock. Option to add your own padlock for additional security
Optional security bracket kit locks mobile cart to a fixed location on the floor or wall to secure it in place
Super Safe
Well-designed ventilation and continuous operating fans keep devices cool
For user and equipment safety, the entire cart is to be tested and certified to UL 60950 standard

Tech Specs

Screen ≤ 15.6"† Capacity ≤ 7.6 lbs‡ 3.4 kg Lift — Tilt — Pan — Rotation — VESA —

Description: Zip40 Charging and Management Cart (black/silver)
Includes 40 dividers, 9 small device divider stoppers, 12.5' (3.8 m) country-specific power cord, 4 country-specific 10-outlet power strips, two 20-unit brick storage trays, four 5ʺ dual-wheel locking casters, external auxiliary outlet (2 receptacles in US, JP or 1 receptacle in EU, UK, AU, CN), 2 mounting brackets for Ethernet switch, 2 internal auxiliary outlets for Ethernet switch and WAP installation, power on/off switch, 4 keys, 40 CAT6 Ethernet cables, 3 Ethernet cable storage trays, one 19' (5.9 m) CAT6 Ethernet cable, Velcro cable management straps
Ships fully assembled
Total Capacity: Up to 40 devices with 1.1"-wide (28 mm) slot; up to 30 devices with 1.4"-wide (35 mm) slot
† Maximum device dimensions: 17.1ʺW x 11.2ʺH (43.4 x 28.4 cm) including case and cord
Divider bumpers shorten the slot size to provide easy plug-in access for smaller tablet devices
Maximum adapter dimensions: Brick-style AC adapter = 7ʺH x 3ʺW x 2.2ʺD (17.8 x 7.6 x 5.6 cm). Wall-plug-style AC adapter = 2.2ʺW x 4.7ʺL x 3.9ʺD (5.5 x 12 x 10 cm) including cable strain relief. Cable diameter = 2.6–4.6 mm
‡ Weight capacity: Total = 255 lbs (116 kg); 76.5 lbs (34.7 kg) per shelf (3 shelves total in cart); 25 lbs (11.3 kg) top worksurface. Per device maximum weight of 7.6 lbs (3.4 kg) assumes 10 devices per shelf in a cart configured to hold 30 devices in total
Country-specific 10-receptacle outlet strip is designed to work with oversized wall-style and brick-style AC adapters
Uses the AC adapters that come with each device. AC adapters are not included
Cooling/Ventilation: Four 12V DC continuous operation fans and ventilated doors keep equipment cool
External Auxiliary Outlet(s) give you an always-on outlet to plug in extra peripherals like printers or document cameras. No need to choose between using the auxiliary outlets and charging devices—do both at the same time!
Location included for installation of a Wireless Access Point (WAP not included). Maximum dimensions of the WAP = 10ʺW x 10ʺD x 2.2ʺH (25.4 x 25.4 x 5.6 cm)
Location included for installation of a standard 1U rack mountable Ethernet Switch (switch not included). Maximum dimensions of the switch = 17.5ʺW x 12.4ʺD x 1.8ʺH (44 x 26 x 4.4 cm). Maximum weight of the switch = 12 lbs (5.4 kg)
Country-specific power cord =12.5ʹ (3.8 m) long; stored on a recessed cord wrap
Environmentally clean: RoHS, REACH, WEEE and EU (94/620EC) packaging compliant
Power System: input/output = 100-240V~, 12-10A, 50/60 Hz
Temperature Range: operating 0° to 30°C (32° to 86°F); storage -40°C to -60°C (-40° to 140°F)
Relative Humidity (maximum): operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing)
Altitude (maximum): 2000 m (6,562')
Certification (pending)
UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands, and Entertainment Centers for Use with Audio and/or Video Equipment
ICES-003 Issue 4, Class A
FCC Part 15 Class
RoHS and Reach compliant material used
Product Dimensions: 30.3ʺW x 26.1ʺD x 45.4ʺH (77 x 66 x 115 cm)
Product Weight: 181 lbs (82 kg)
Shipping Dimensions: 37ʺW x 30ʺD x 52ʺH (94 x 75 x 132 cm)
Shipping Weight: 227 lbs (103 kg)
Warranty: Ten (10) years mechanical/workmanship; two (2) years electrical components; one (1) year cables (power/Ethernet)
