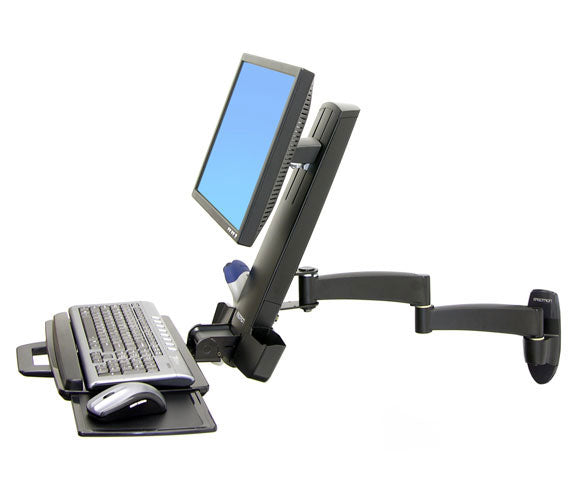

200 Series Combo Arm (black) - Keyboard & Monitor Mount

Attach your LCD and keyboard to the 200 Combo and free up space. This wall unit solution features 3-point telescoping motion, providing greater reach to bring the system to where it’s needed.

The system accommodates monitor, bar-code scanner, keyboard, wrist rest and mouse. A unique cable management system conceals and organizes cords, making cleaning a snap!

Benefits
Easily position flat panel monitor and keyboard for maximum comfort and productivity
Distance between screen and keyboard is adjustable
Five-inch (13 cm) LCD height adjustment
Rugged steel construction
Extremely easy to clean; promotes infection control
Barcode scanner holder provides easy access to hand-held scanner
Extends keyboard out up to 39" (99 cm); fold equipment back out of the way when not in use. With the keyboard folded up, total system depth is as little as 12.1" (31 cm)
Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
Constant Force, patented lift technology provides fluid, one-touch adjustment of LCD
Clean, concealed and neat routing of cables through the expansive cable management system

Tech Specs

Screen ≤ 24" Capacity 6 to 18 lbs* 2.7 to 8.2 kg Lift 5"† 13 cm Tilt 30°‡ Pan 360° Rotation 360° P/L VESA MIS-D

Part Number: 45-230-200
Description: 200 Series Combo Arm (black)
Includes 200 Combo Arm, wall mount bracket, height-adjustable LCD mount, wrist rest, scanner and mouse holder, integrated keyboard tray with left/right mouse tray, handle, VESA mounting kit, cable ties
* Weight Capacity: display = 6-18 lbs (2.7-8.2 kg); keyboard, mouse and barcode scanner = 5 lbs (2.3 kg)
Monitor depth greater than 2" (5 cm) may diminish capacity
† Height of display adjusts 5" (13 cm); height of keyboard tray is fixed
‡ Monitor up/down tilt = +25°/-5
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Integrated fold-down keyboard tray with right/left mouse tray (includes built-in mouse pad surface)
Negative-tilt keyboard tray adjustable 0 to -10 degrees
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel
Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. Separately ordered Wall Track or Wall Plate accessory is recommended to strengthen installation by distributing weight over a larger surface area
Shipping Dimensions: 12.4"H x 20"W x 23.6"D (315 x 508 x 605 mm)
Shipping Weight: 22.7 lbs (10.3 kg)
Warranty: Five (5) years
